产品详情
4SPD2
分享到:
4SPD2
价格:
0.00
型号: 4SPD2
产品详情

Typical applications:

Water supply system

Booster

Garden and farm irrigation

Lowering underground water level

Various industrial applications


Working conditions

Dilute and clean non-corrosive liquid which does not contain solid grains or fibers.

The pump should be running under the performance range of the thick curves to prevent

the motor from overheating due to lower capacity or overloading due to higher capacity.


Pump/Motor

Qmax:4(m³/h)

Adopted the NEMA standard

Insulation class:B

Protection grade:IP68

Highest temperature of liquid: 35℃

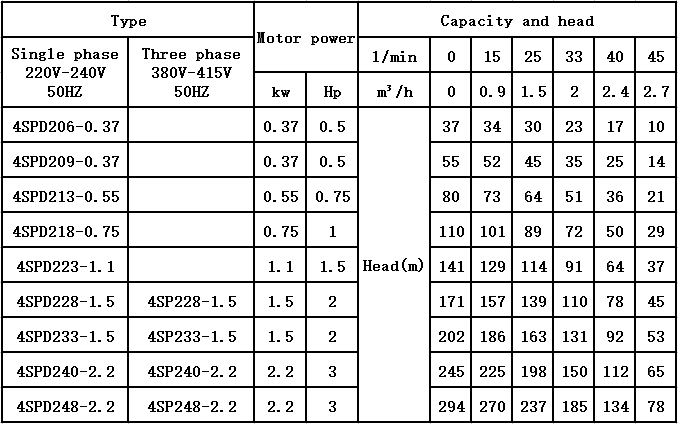

PERFORMANCE TABLE:           rpm:2850      outlet:G1.25"
